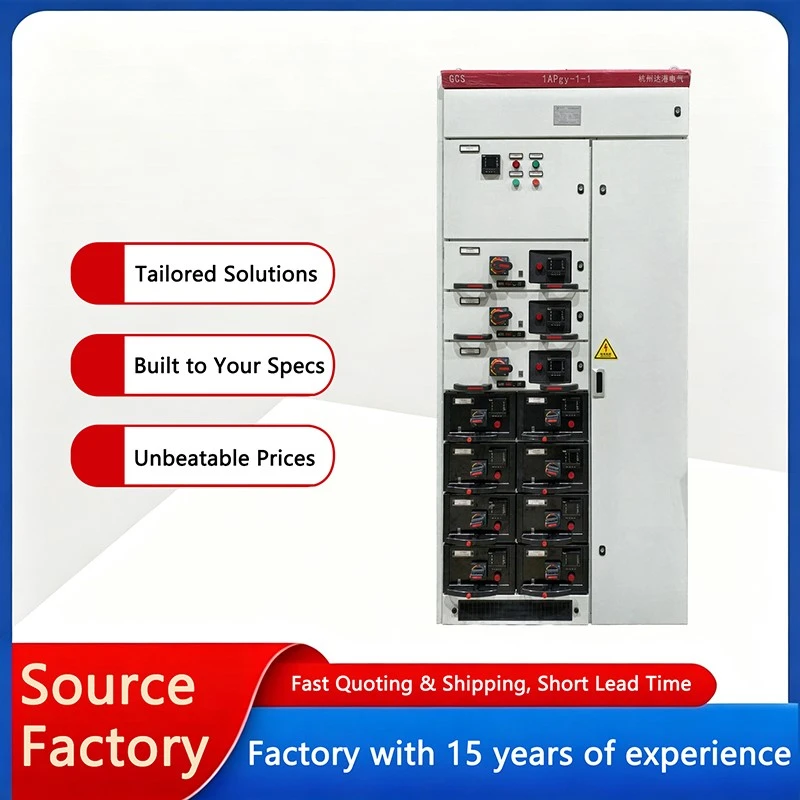

Send Power to Every Device
A factory has lights, air conditioners, machine tools, and pumps. All take power from the outgoing cabinet. Our Outgoing Feeder Distribution Cabinet can hold more than 20 circuits. We use molded case circuit breakers like the NSX series. You can add accessories: auxiliary contacts, alarm contacts, and shunt trips. Current range from 16A to 630A.
Modular Installation for Easy Changes
Second, we use modular installation. The breakers snap onto a DIN rail. To change one, you just snap it off. No need to turn off the main breaker. We put labels on every circuit. We also print wire numbers. The electrician understands it at a glance.
Optional Smart Meter per Circuit
Third, you can choose a smart meter for each circuit. You see exactly which machine uses how much power. This helps you save energy. We promise: the neutral bar and ground bar are copper, not iron. Some suppliers use iron plated with copper. We do not do that.
Technical Parameters
|
Parameter |
Value |
|
Rated Voltage |
400V |
|
Rated Insulation Voltage |
660V |
|
Main Busbar Current |
100 ~ 630A |
|
Number of Outgoing Circuits |
4 ~ 60 |
|
Rated Short-Time Withstand Current |
10kA/1s |
|
Protection Level |
IP40 |
|
Standards |
GB/T 7251.1-2023, IEC 61439-1 |
Our Commitment
Can you make an Outgoing Feeder Distribution Cabinet with a meter for each circuit?
Yes.
What is the lead time?
15 days.
Do you ship overseas?
Yes. Hangzhou Dagang Electric Co., Ltd. has 15+ years of experience. Send us your load list.
