304 Stainless Steel Distribution Cabinet

304 Stainless Steel Distribution Cabinet
Product Introduction:

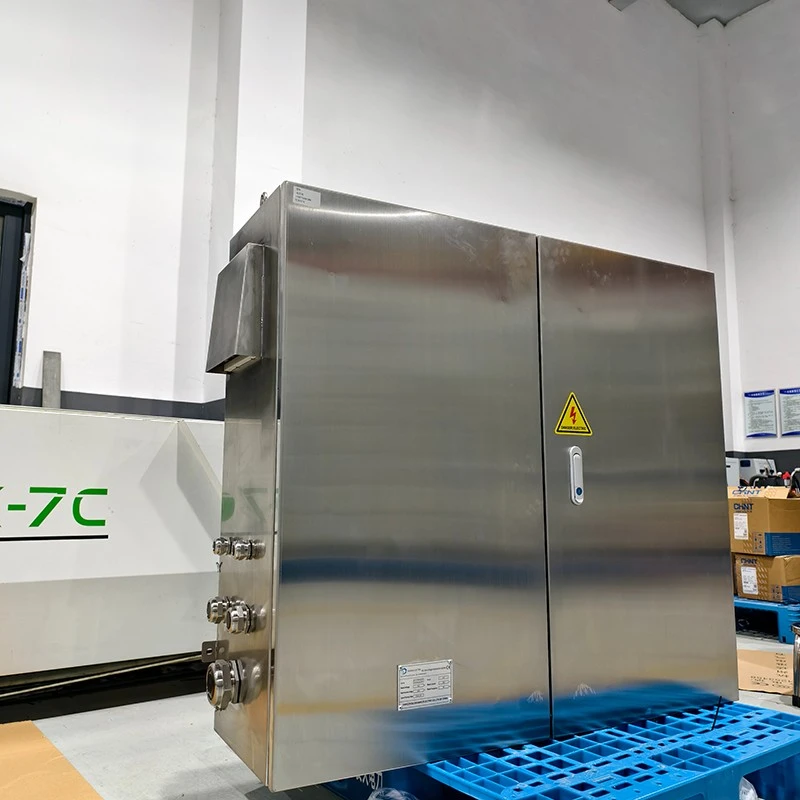

Ordinary steel cabinets rust in wet or corrosive environments. Our 304 Stainless Steel Distribution Cabinet solves this problem. We use SUS304 stainless steel with 2.0mm thickness. The surface is brushed or mirror-finished. We do a 1000-hour salt spray test. No rust. This cabinet is perfect for food factories, chemical plants, and seaside installations.
Send Inquiry
Description
Technical Parameters

Rust-Proof for Chemical and Coastal Areas



Ordinary steel cabinets rust in wet or corrosive environments. Our 304 Stainless Steel Distribution Cabinet solves this problem. We use SUS304 stainless steel with 2.0mm thickness. The surface is brushed or mirror-finished. We do a 1000-hour salt spray test. No rust. This cabinet is perfect for food factories, chemical plants, and seaside installations.

Fully Welded and Sealed



We weld all seams completely. No gaps. The door has a polyurethane foam seal. The protection level is IP65. Water and dust cannot enter. A client in a coastal city in Zhejiang installed our 304 Stainless Steel Distribution Cabinet five years ago. It still looks new. The hinges and locks are also 304 stainless steel. No iron parts at all.

Easy to Clean and Safe



The surface is smooth with no exposed screws. This makes it easy to wipe down. Food and pharmaceutical companies like this feature. We also add a ground stud for safety. You can mount it on a wall or on the floor. Hangzhou Dagang Electric Co., Ltd. has supplied hundreds of these cabinets. Can you make it with a viewing window? Yes, with tempered glass. What is the lead time? 15-20 days. Is it suitable for outdoor use? Yes, IP65 rating.



Technical Parameters



Parameter

Value

Material

SUS304 stainless steel

Thickness

2.0mm

Protection Level

IP65

Salt Spray Test

≥1000 hours

Surface Finish

Brushed or mirror

Weld Type

Full welding (TIG)

Impact Rating

IK08

Standards

GB/T 3280, IEC 60529



20260615184553131040
20260615184553131140
20260615184553131240
20260615184553131340
